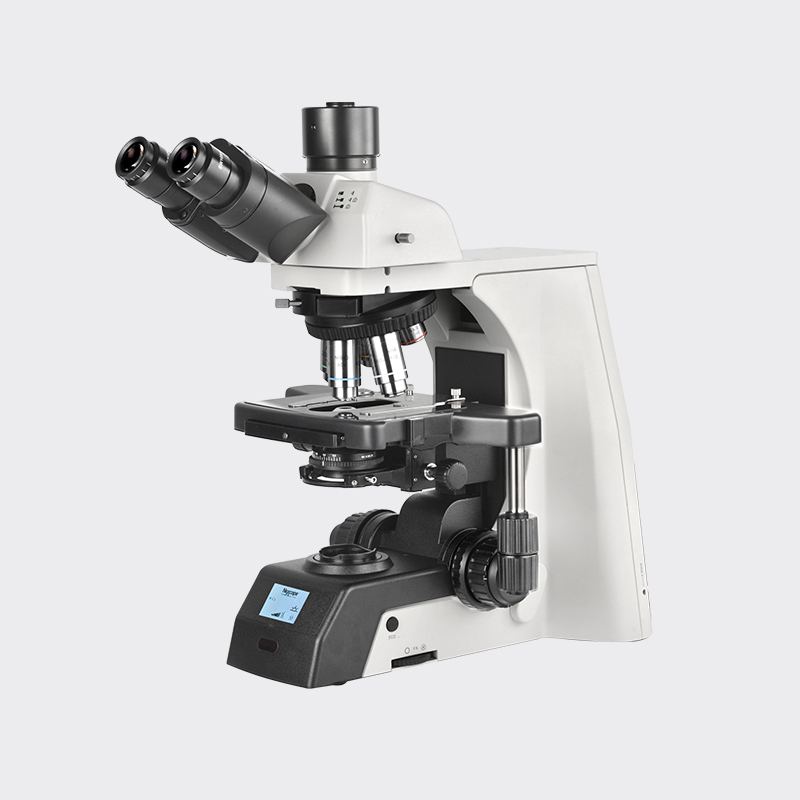

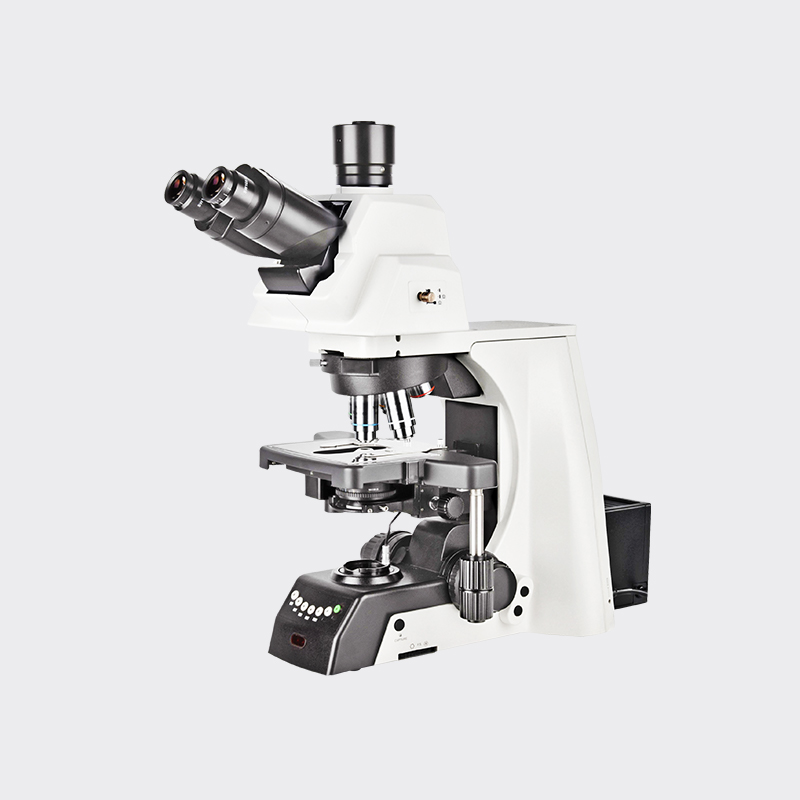

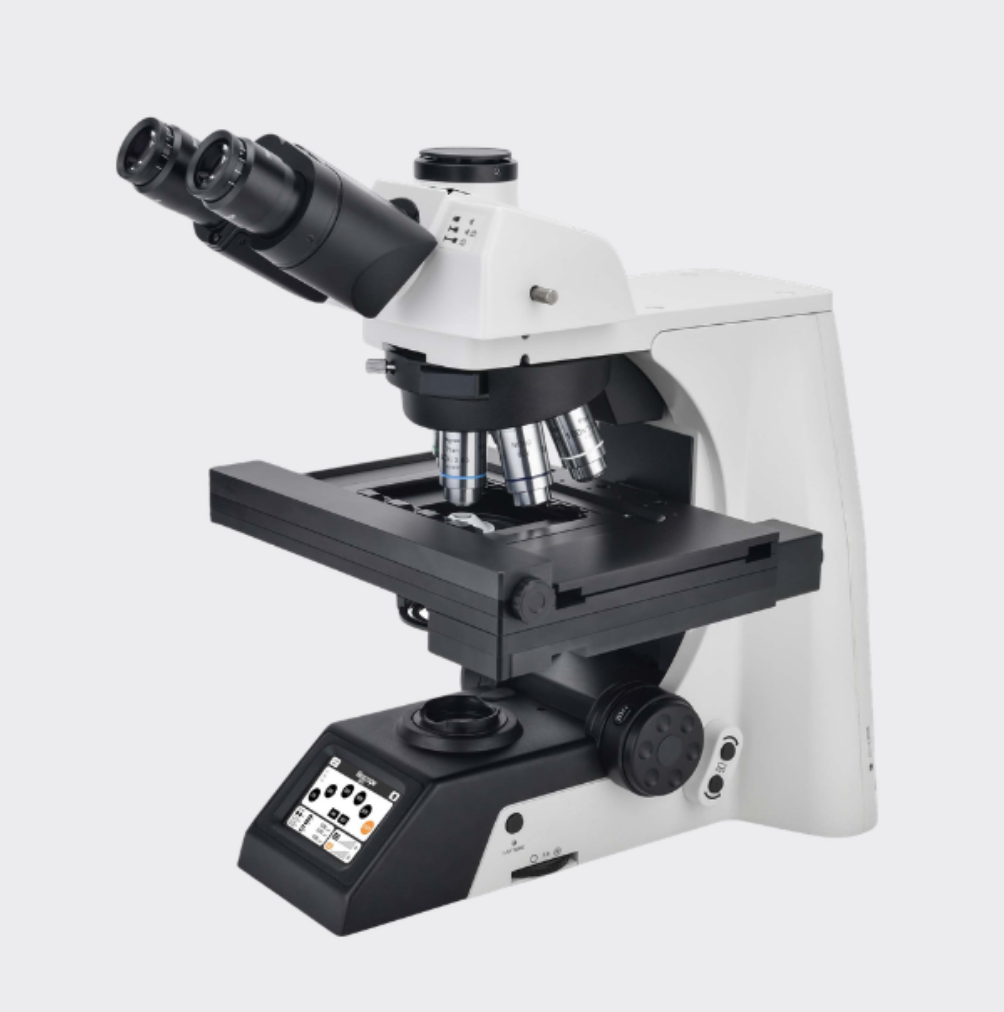

NE900 Research‑Grade Upright Microscope

Tailored for research in pathology, cytology, virology and other fields, the NE900 adopts the NIS infinity‑corrected optical system, delivering precise imaging with excellent chromatic aberration correction. Combined with high‑fidelity color‑rendering illumination, premium optical components and a full range of accessories, it supports advanced life‑science applications including darkfield, DIC and high‑performance fluorescence observation.

Overview

Research‑Grade Upright Microscope for Advanced Science & Clinical Research

Designed for pathology, cytology, virology and more, the NE900 combines superior optics and mechanics to deliver professional imaging solutions for labs and research institutes.

✓ Premium Optical Imaging System
Built on the NIS infinity‑corrected optical system for sharp imaging and excellent chromatic aberration correction. With high‑fidelity illumination, top‑tier optics and full accessories, it supports advanced life‑science workflows: dark‑field, DIC and high‑performance fluorescence observation.

✓ Intelligent & Efficient Operation
Motorized modules and professional imaging software enable fast preview and sample examination. Simplified repetitive workflows improve usability, comfort and lab productivity.

Research‑Grade Upright Microscope for Advanced Science & Clinical Research

NE910
Manual Microscope
NE910-FL
Manual Fluorescence Microscope

NE920
Encoded Manual Microscope
NE920-FL
Encoded Manual Fluorescence Microscope

NE930
Semi‑Motorized Microscope
NE930-FL
Semi‑Motorized Fluorescence Microscope

NE950

Fully‑Motorized Microscope

NE950-FL

Fully‑Motorized Fluorescence Microscope

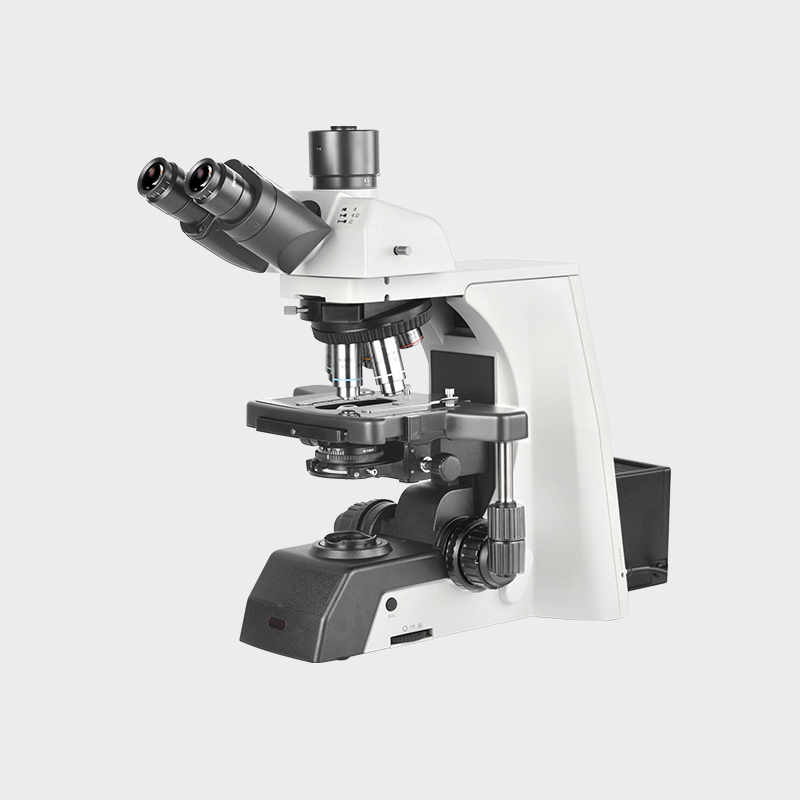

NE910/920 Outstanding Performance & Superior Optical Capability

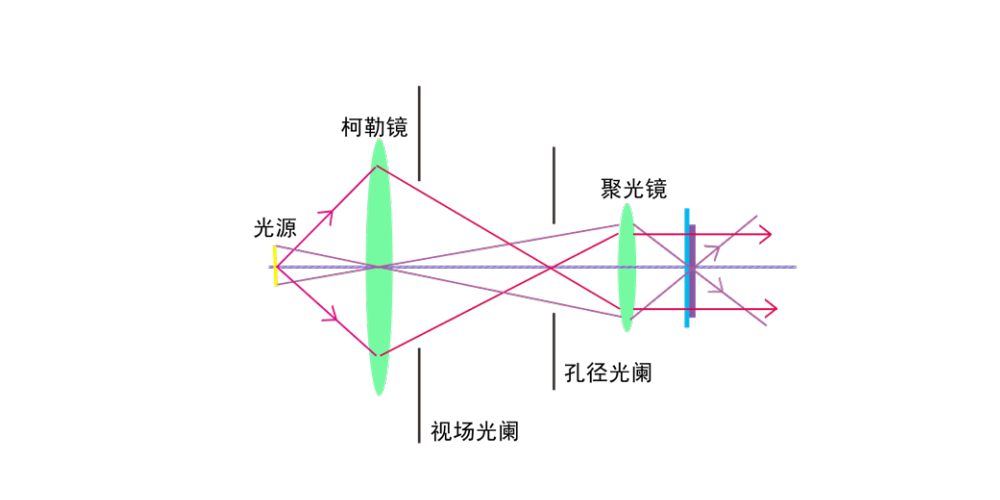

Köhler Illumination for Uniform Lighting
Regarded as the gold‑standard microscopy illumination system, Köhler illumination delivers bright, even lighting across the entire field‑of‑view and is critical for high‑quality digital microscopy. Halogen lamp illumination is supplied as standard; LED illumination is available as an option for truer‑to‑life imaging and high‑result repeatability.

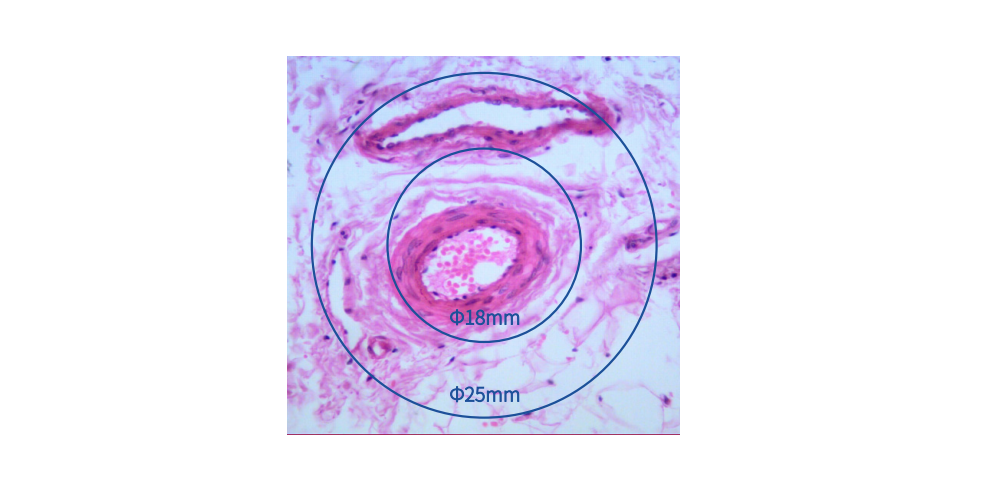

Wide‑Field Eyepieces
25 mm field‑number eyepieces provide an extended field of view for comprehensive and rapid sample viewing. Ideal for specimens that demand panoramic observation.

User‑Friendly Design

Adjustable Operation Handle

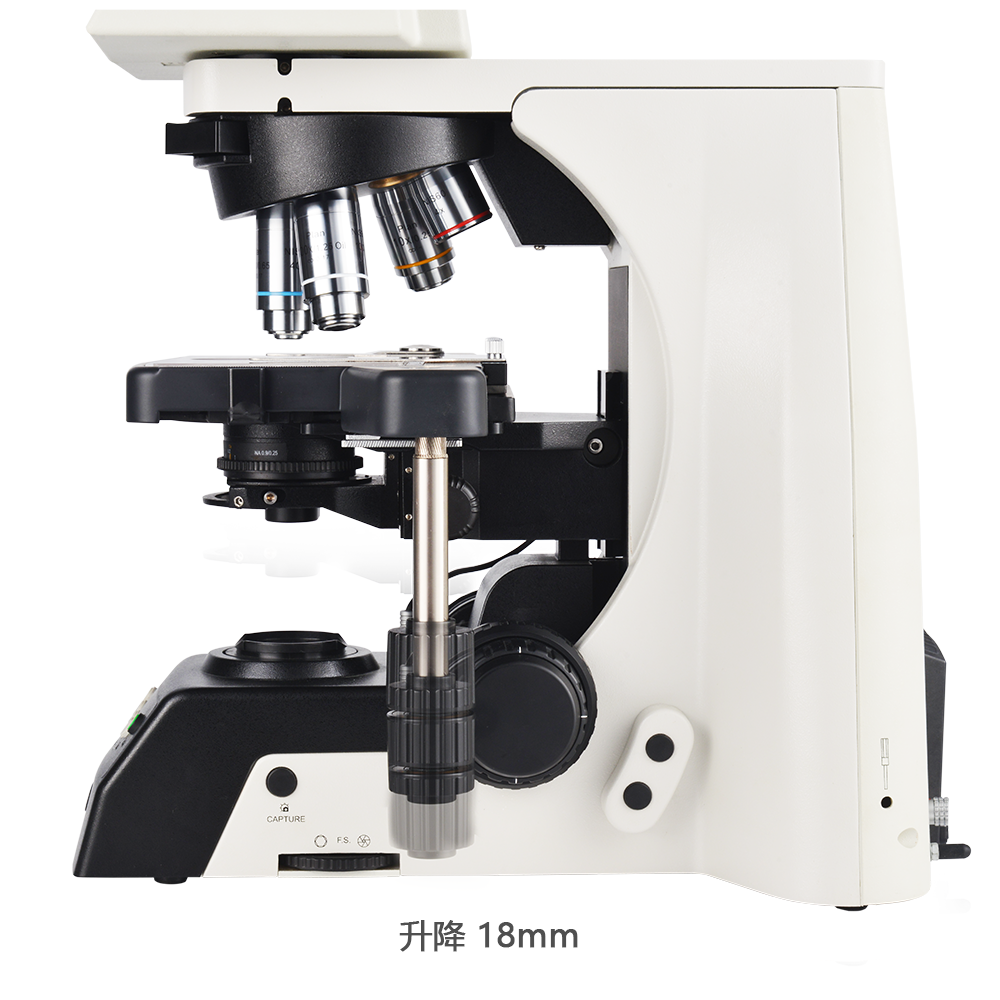

18 mm height‑adjustable handle with adjustable torque for smooth stage movement. Low‑position focusing mechanism supports table‑top hand operation. Ergonomic design for superior comfort.

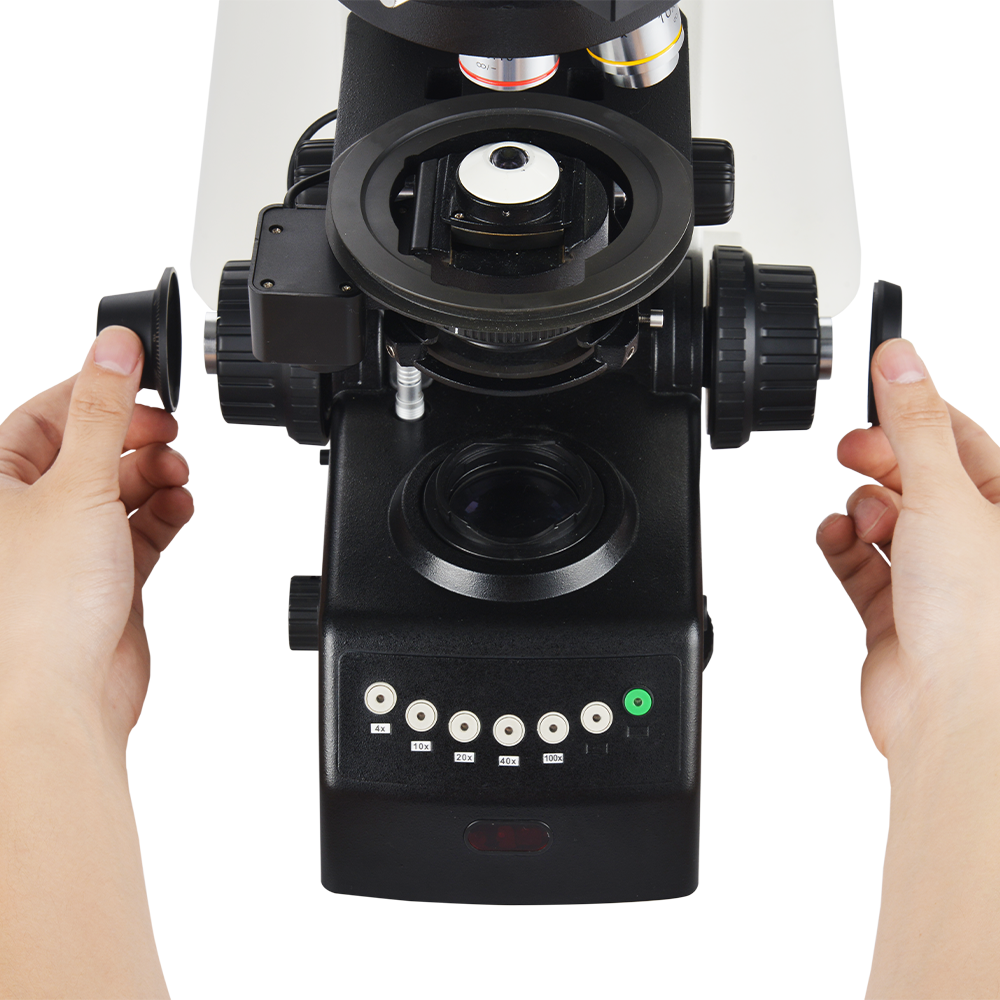

Left / Right‑Hand Operation Switching Mechanism
To accommodate users with different operating habits, the focusing and stage controls can be conveniently reconfigured for left‑hand or right‑hand operation.

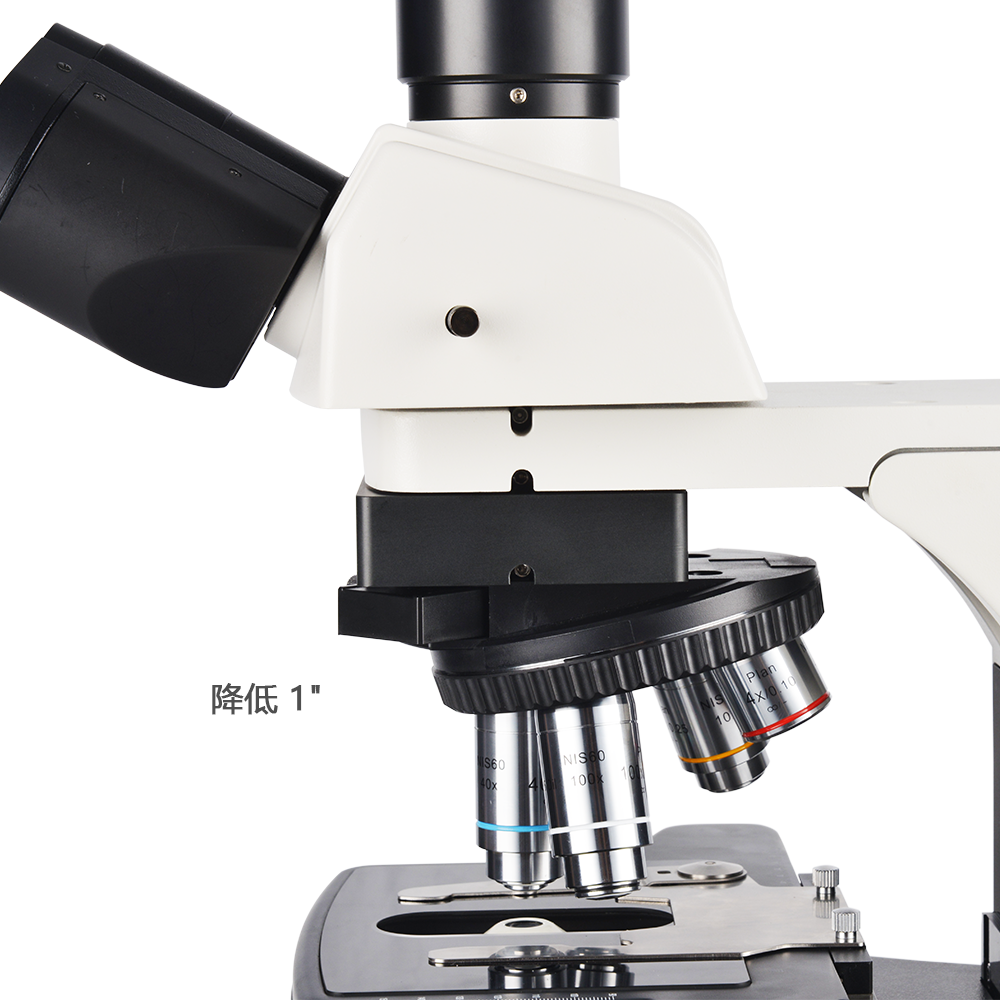

Low‑Position Stage Adjuster
Using objective turret spacers, the stage height can be lowered by 1 inch from its standard position. This facilitates easy specimen replacement while maintaining a comfortable operating posture.

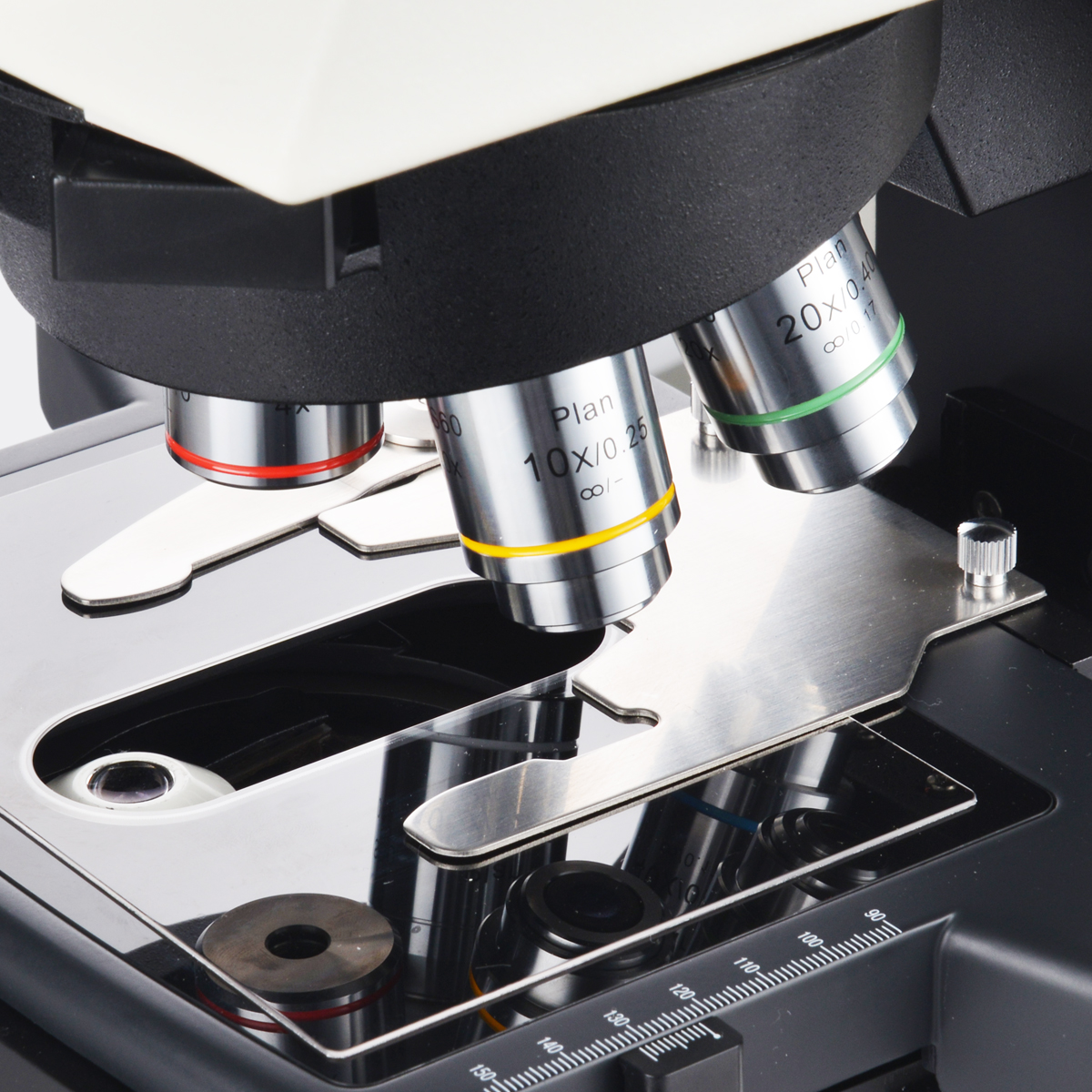

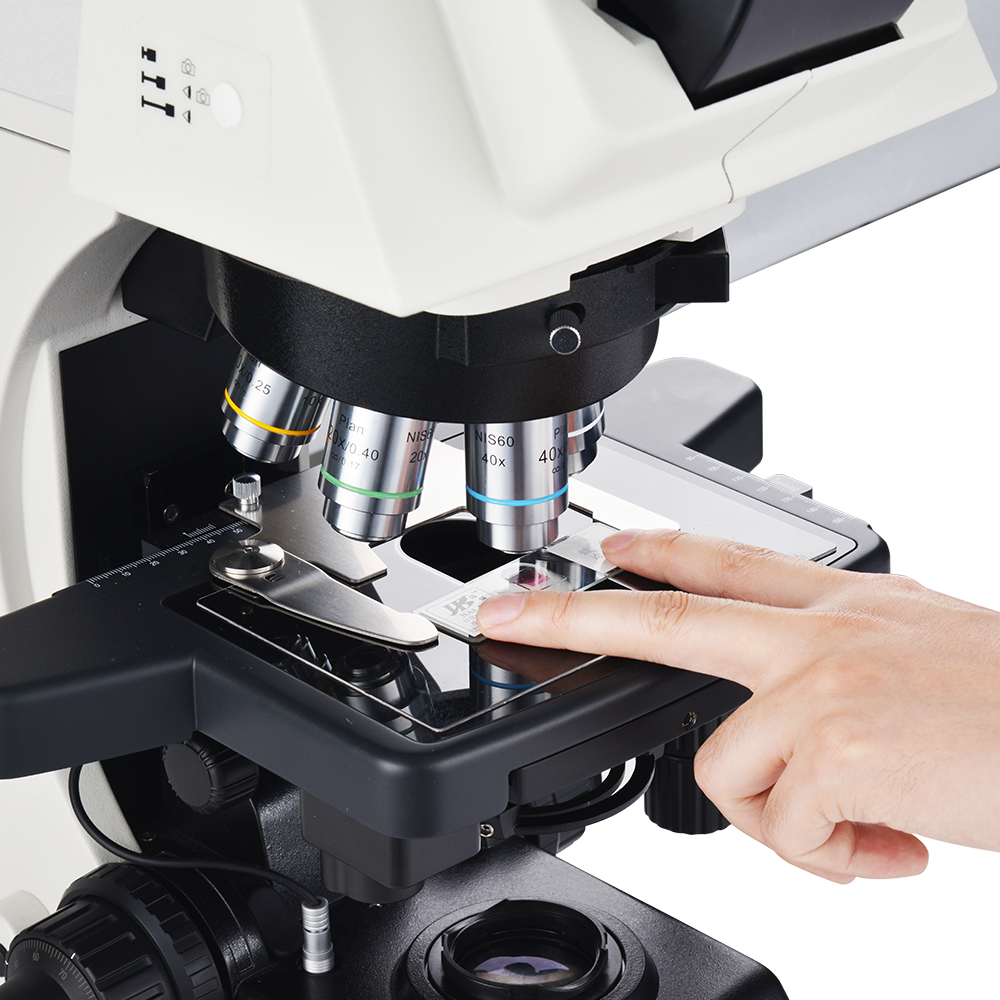

One‑Handed Specimen Loading & Unloading
Stage bump‑guide enables single‑hand specimen loading/unloading, freeing hands for observation and boosting operational throughput.

NE930: Easy‑to‑Operate for Higher Working Efficiency

While delivering excellent optical performance and sophisticated ergonomic design, the NE930 incorporates multiple convenient and user‑centric features for more comfortable microscopic observation, simpler magnification switching and faster image capture. It streamlines repetitive operations to boost productivity and eases microscope‑based inspection workflows.

Enhanced Flexibility & Operating Comfort

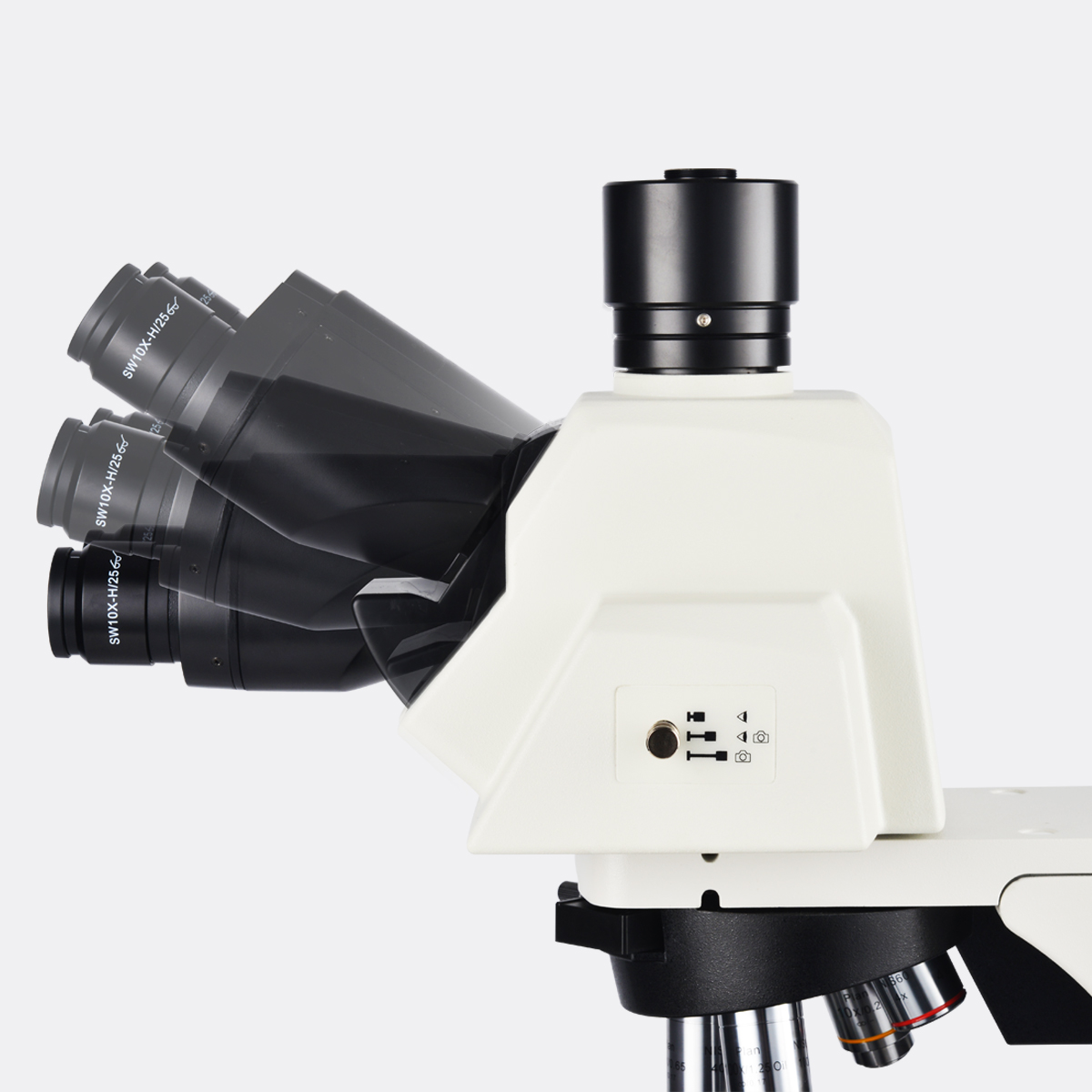

Tiltable Viewing Head for Comfortable Eyepiece Observation

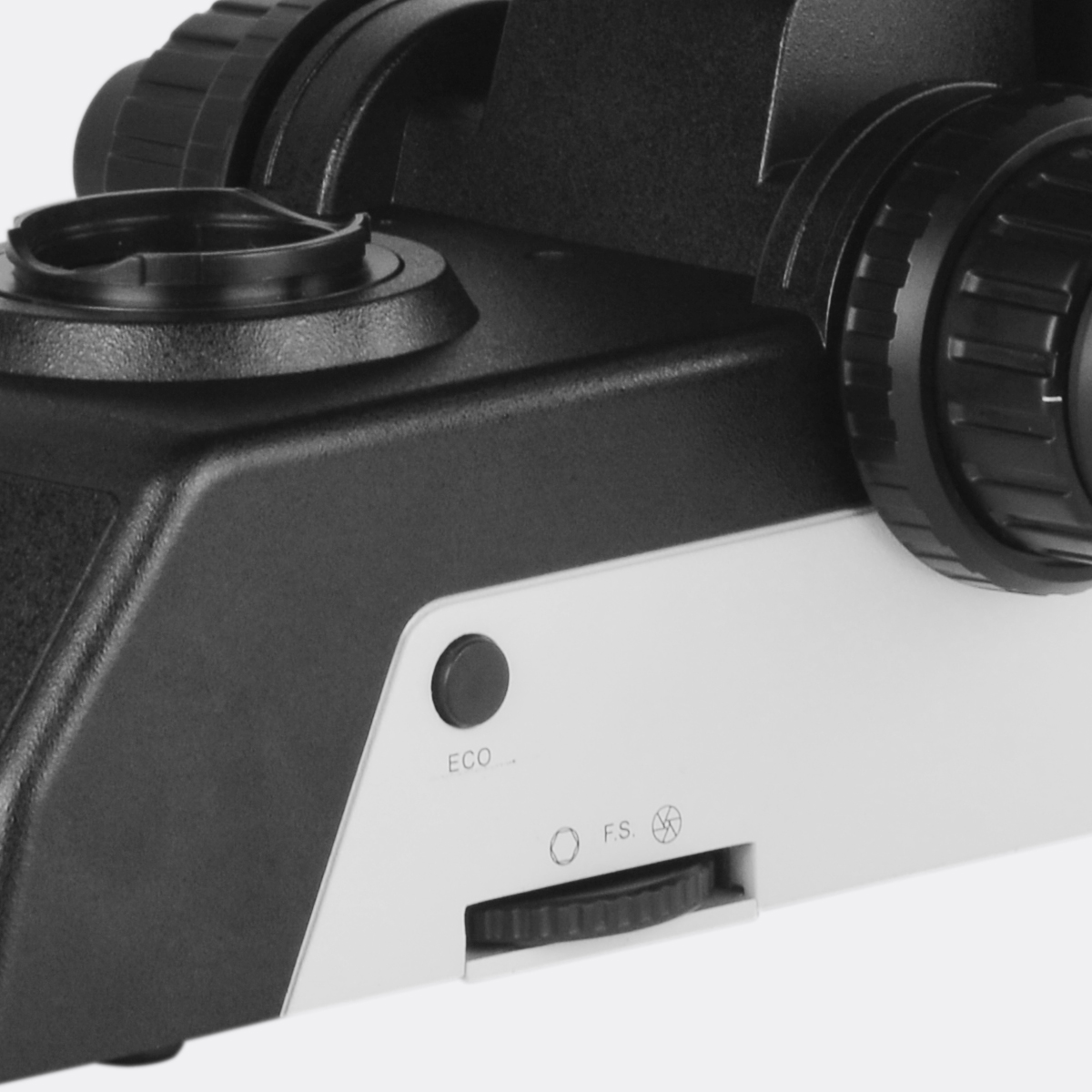

Light‑Intensity Management Reduces Visual Fatigue

Microscope Image Capture Button for Easy Image Acquisition

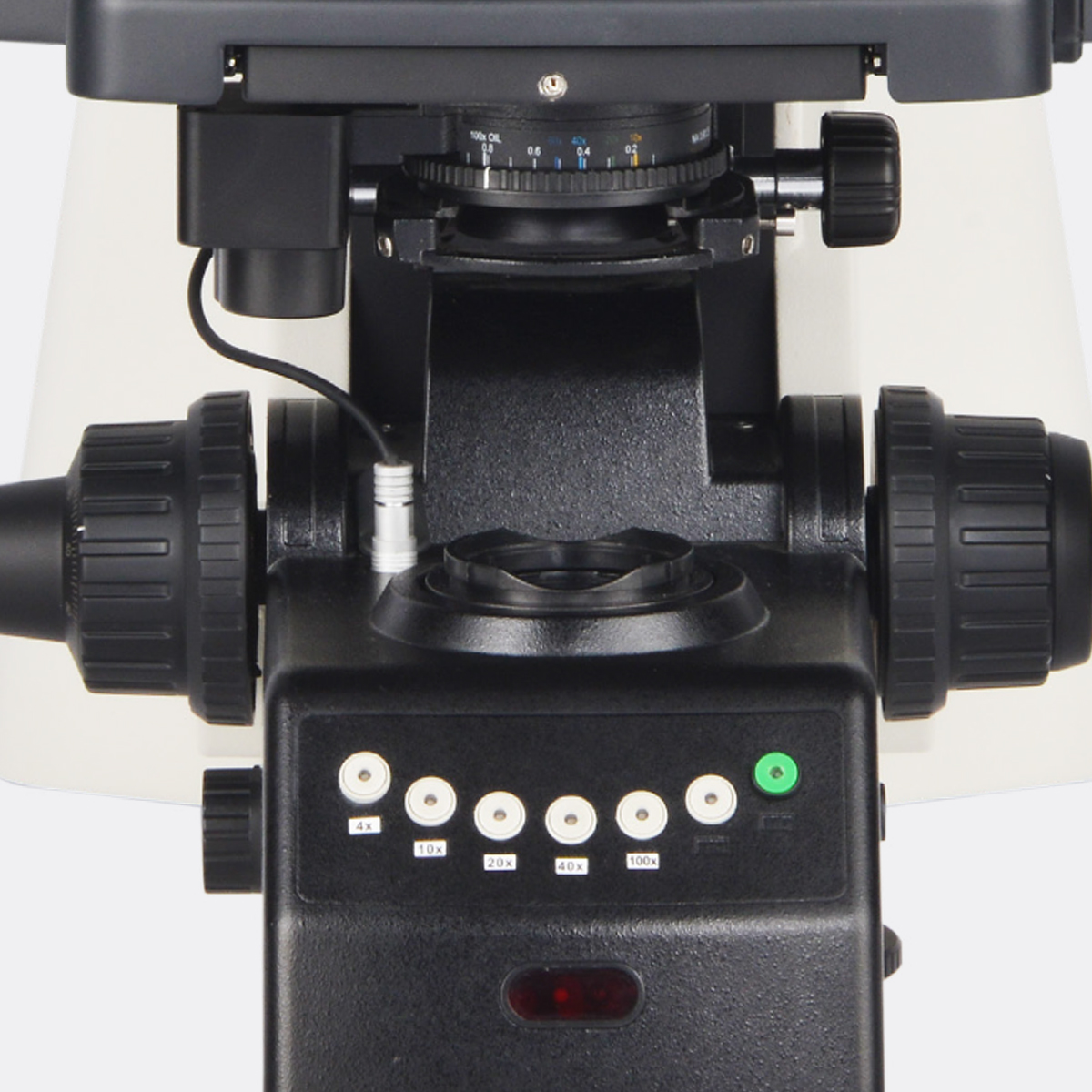

Motorized Objective Magnification Switch for Convenient Magnification Changes

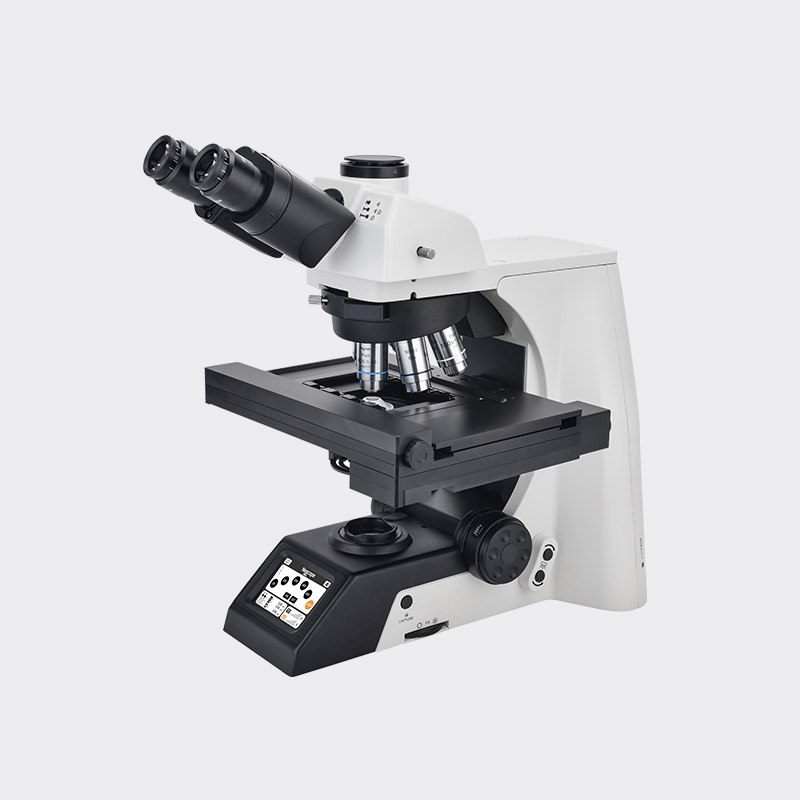

NE950 Fully‑Motorized Microscope — Smart Full‑Motorization for Fast, Efficient Workflows

Featuring a motorized stage, auto‑focus, motorized objective nosepiece, touch‑screen controller and powerful imaging software. Precise inter‑component coordination enables microscope observation, image capture and image processing while minimizing repetitive operations. The system can restore previous microscope settings and parameters to improve imaging stability and accuracy. Experience fast, streamlined microscope operation with high precision and ease‑of‑use.

High precision and simple‑to‑operate

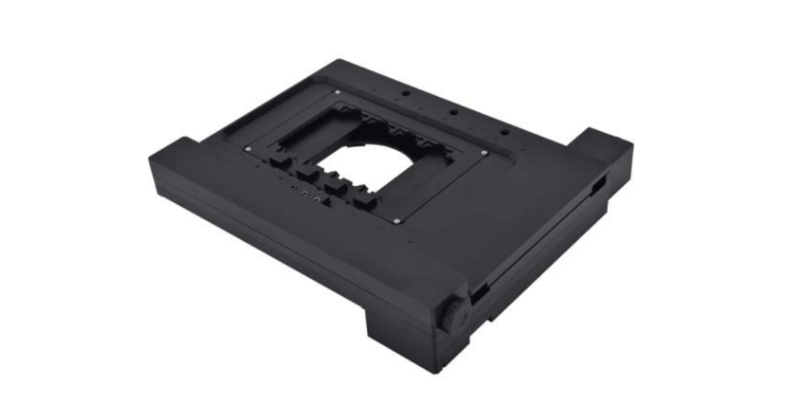

Motorized Stage Provides Motion Control in Three Axes

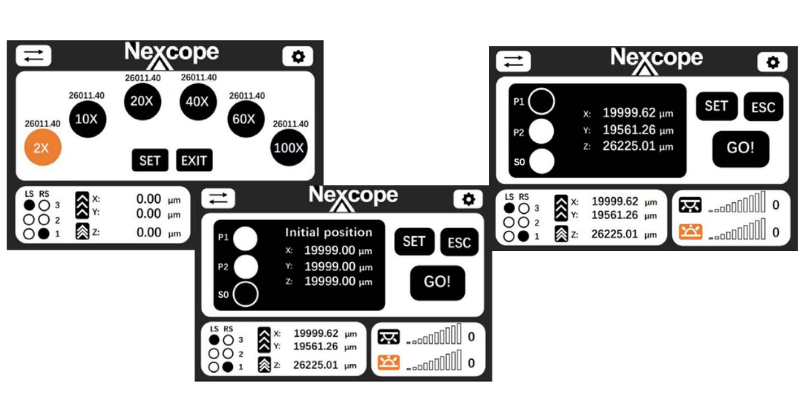

Touch‑Screen Controller — Space‑Saving and Flexible Control

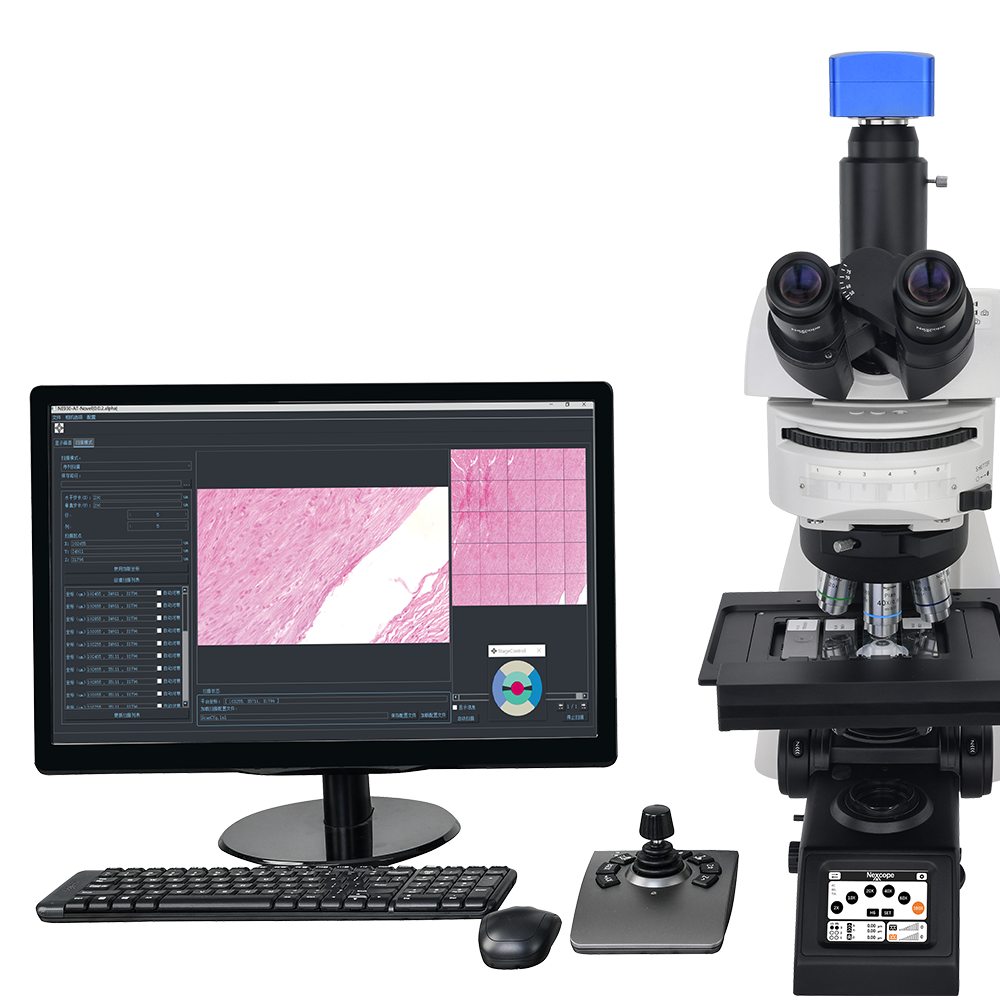

Nomis Pro X Micro‑Imaging Processing Software

Independently developed by Nexcope, NomisProX offers highly integrated control of core microscope functions, providing an efficient, user‑friendly all‑in‑one experimental solution.
Thanks to superior integration and flexibility, it handles complex scenarios and specialized research needs. Eliminating complicated manual operations, it lets users concentrate on experiments and innovation.

- Multi‑dimensional Imaging & Display
- High‑Speed Hardware Control
- Deconvolution

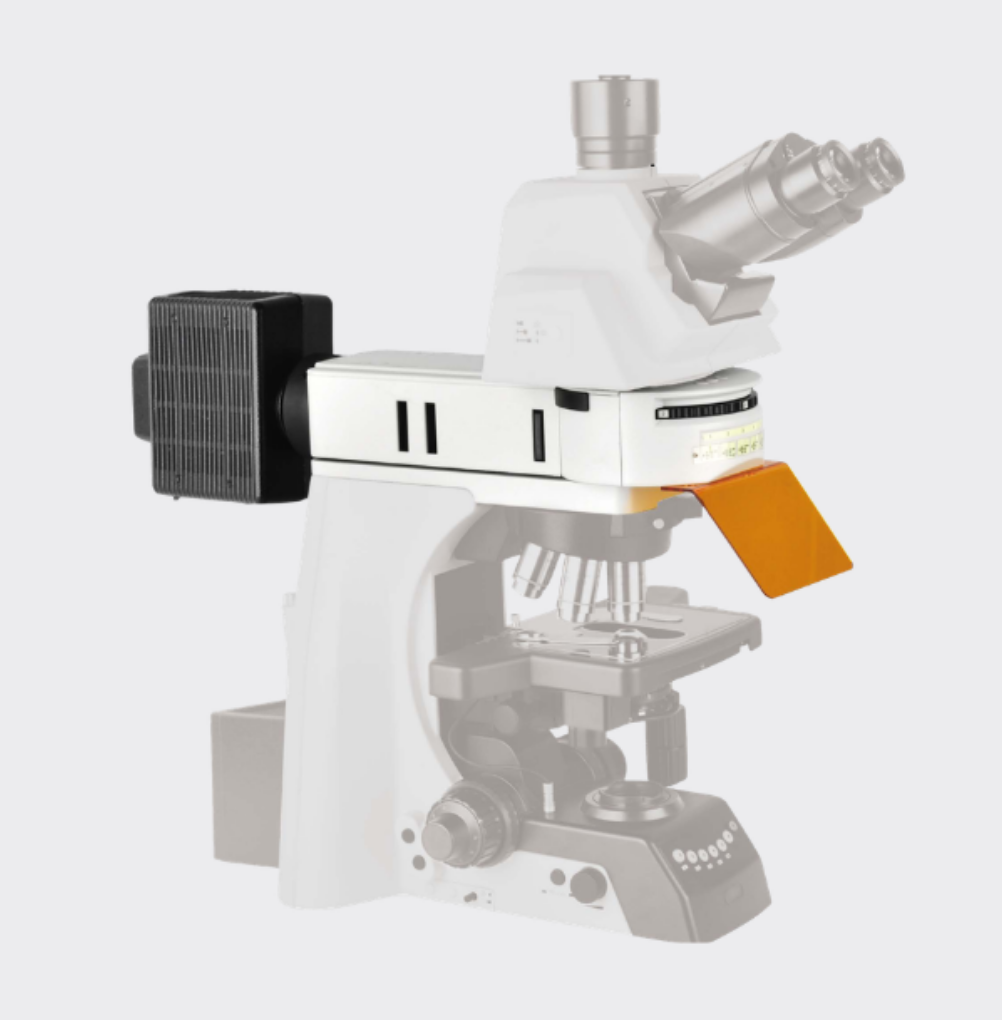

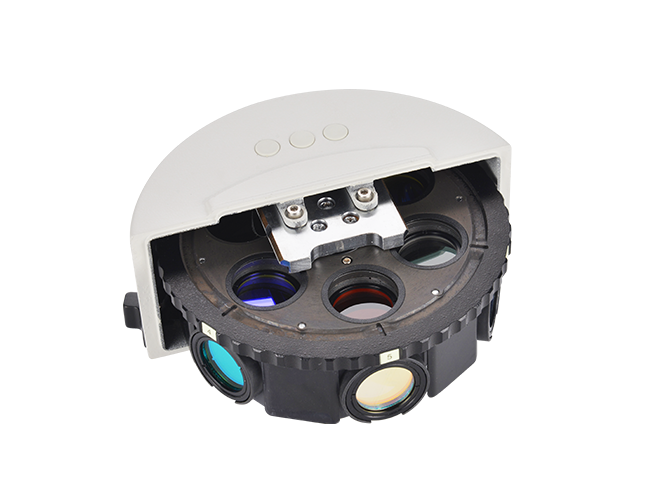

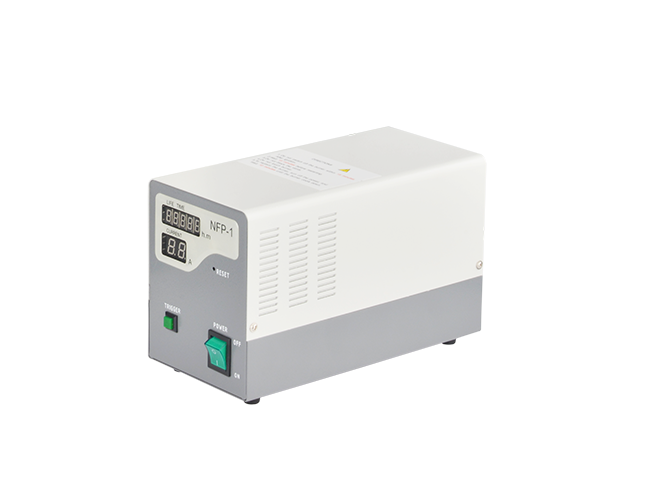

Epi‑Fluorescence Accessory Kit

Broad compatibility with fluorescent dyes and high signal‑to‑noise (S/N) ratio

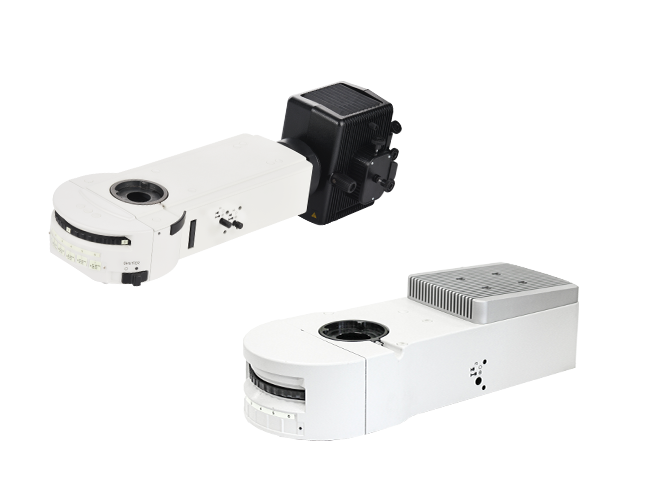

The full NE900 series supports optional FL‑900 vertical fluorescence illuminators for fluorescence observation. High‑performance fluorescence filters, high‑NA objectives and excellent color‑rendering optics produce bright, efficient fluorescence images with dark backgrounds.
